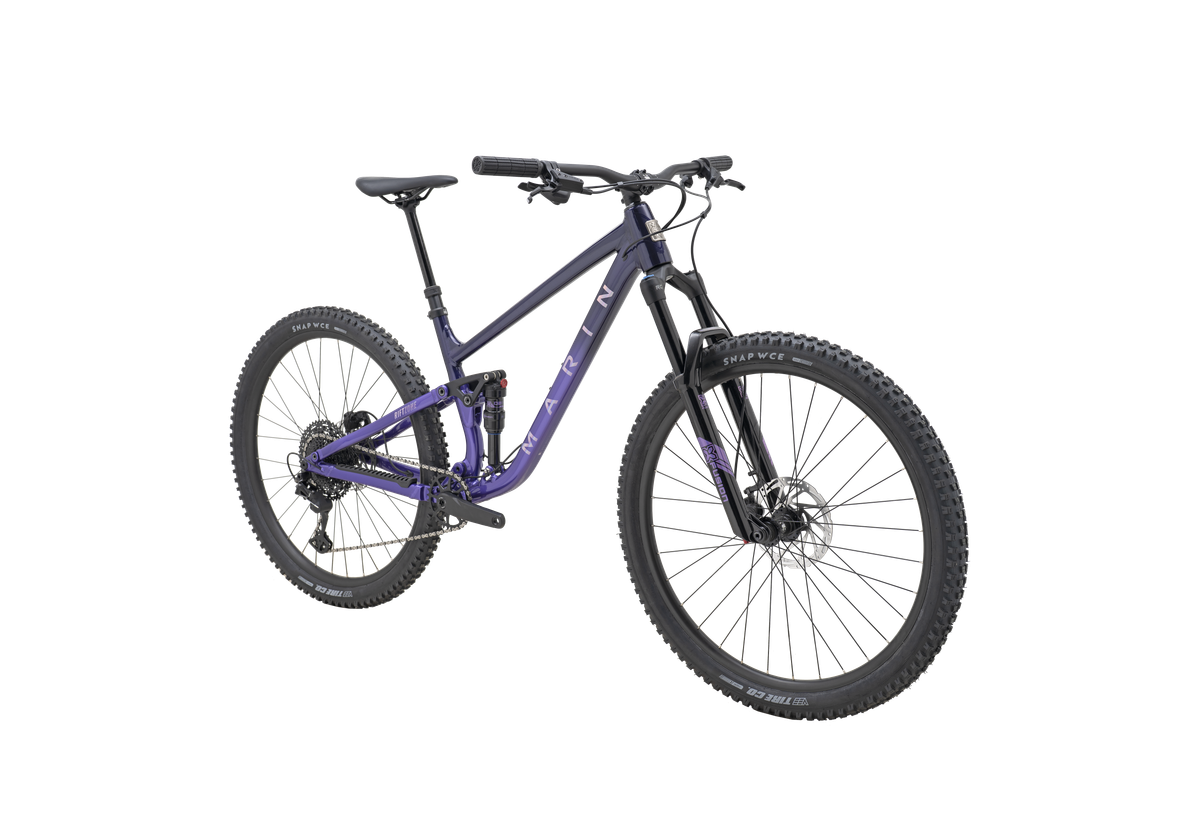

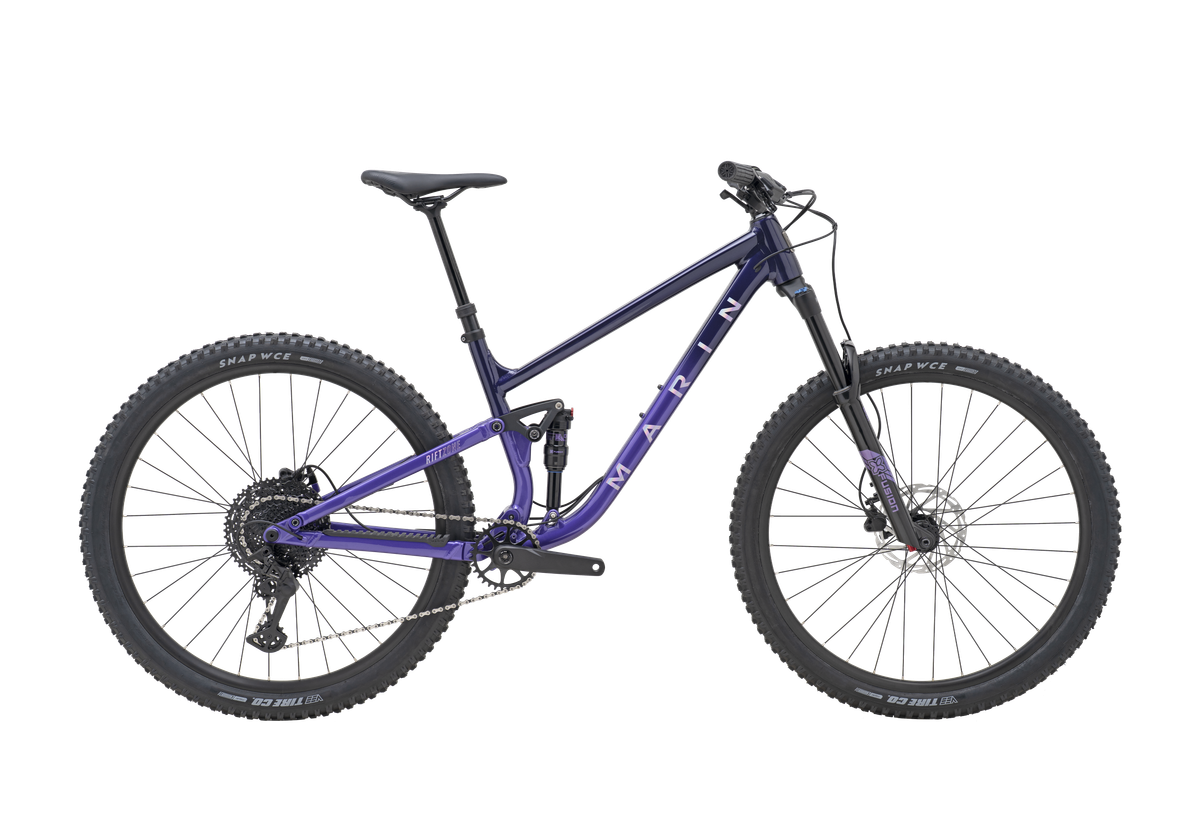

Marin Rift Zone 1 - Medium 29" Wheel

SPECIFICATIONS

• FRAME

  Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

• FORK

  X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset

• SHOCK

  X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom

• RIMS

  Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

• HUB FRONT

  Shimano HF-MT400B, 110x15mm, Centerlock

• SPOKES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible

• DERAILLEUR REAR

  Shimano RD-U6000, 11-Speed GS

• SHIFT LEVER

  Shimano, SL-U6000-11R, 11-Speed

• CRANKSET

  Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

• BOTTOM BRACKET

  External Sealed Cartridge Bearing

• CHAIN

  Shimano LG-500 11-Speed

• CASSETTE

  Shimano CS-LG400-11, 11-Speed, 11-50T

• BRAKES FRONT

  Tektro HD-M280 Hydraulic, 180mm Rotor

• BRAKES REAR

  Tektro HD-M280 Hydraulic, 180mm Rotor

• BRAKE LEVERS

  Tektro HD-M280

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin MTN, Closed End

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm

• SADDLE

  Marin Speed Concept




• EXTRAS

  Closed 9-12 Thru-Axle Bolt On System
